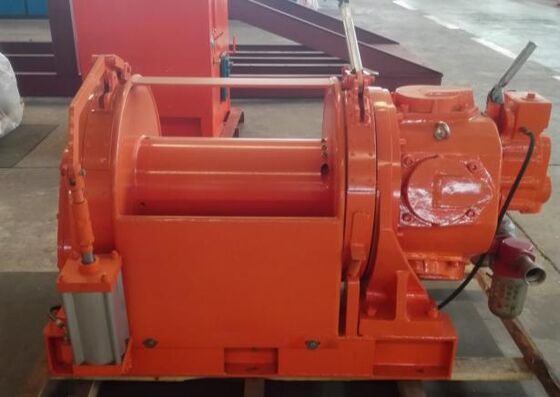

XJFH-10/20Z Pneumatic Winch with Hand Brake and Auto Brake for Explosion-Proof Lifting and Overload Protection
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 12 Months | Type | Air Winch |
|---|---|---|---|
| Control Type | Pneumatic | Weight | 350 Kg |
| Dimensions | 1200mm X 800mm X 900mm | Model | XJFH |
| Brake Type | Automatic Disc Brake | Certifications | CE, ISO |
| Usage | Lifting In Oilfield | Safety Features | Emergency Stop Button, Overload Protection |
| Color | Yellow Orange Or Other Colors | Material | Steel |
| Highlight | Hand Brake and Auto Brake Pneumatic Winch,Explosion-Proof Air Winch,Overload Protection XJFH Series Winch |
||
Product Description
XJFH-10/20Z Pneumatic Winch With Hand Brake and Auto Brake
The XJFH series pneumatic winch is a heavy-duty lifting and traction device powered by an air motor. It features a gear reduction mechanism that drives the reel for reliable performance in demanding industrial applications.
Product Features
- Compact and robust construction for industrial use
- Easy operation with smooth, stepless speed control
- Safe and reliable performance with simple maintenance
- Explosion-proof design suitable for hazardous environments
- Multiple configuration options for various applications
Applications
Ideal for oil fields (including offshore), geological drilling, mining, and other environments with explosive or flammable gases where safety and reliability are critical.
Configuration Options
Available in multiple base types including high base, low base, flange seat, ladder buckle seat, straight wire buckle seat, oil seat, and ear plate seat configurations.
Brake System Types
- Single brake (hand brake)
- Double brake (hand brake + foot brake or hand brake + auto brake)
- Three brake (hand brake + foot brake + auto brake)
Control & Safety Features
- Operation modes: Local control, remote control, or combined local+remote control
- Safety options: Automatic braking, automatic rope arrangement, emergency stop protection
- Additional protection: Overload protection and emergency release devices
Product Numbering System
XJFH
Piston Type Pneumatic Winches
First Floor Max Lifting Force
10 kN
Max Lifting Speed
m/min
Base Type Codes
High base: ellipsis; Low base: L; Flange base: F; T type base: T; M type base: M; Y type base: Y; E type base: E
Brake Type Codes
Single hand brake: ellipsis; Double brake (hand+foot): S; Double brake (hand+auto): Z; Three brake (hand+foot+auto): ZS
Technical Specifications
| Parameter | Metric Value | Item | Imperial Value |
|---|---|---|---|
| Model | XJFH-10/20Z | Model | XJFH-10/20Z |
| Max Lifting Force (kN) | 100 | Max Lifting Force (lb) | 22,500 |
| Rope Speed (m/min) | 0-20 | Max Lifting Speed (ft/s) | 1.1 |
| Rated Power (kW) | 30 | Rated Power (H.P) | 41 |
| Rated Air Pressure | 0.8 | Air Pressure (psi) | 116 |
| Air Consumption (m³/min) | ≤25.6 | Air Consumption (scfm) | 904 |
| Wire Capacity (m) | 200 | Wire Capacity (ft) | 660 |
| Wire Rope Diameter (mm) | φ24 | Diameter (in) | φ0.95 |
| Brake | Hand Brake + Auto Brake | Brake | Hand Brake and Auto Brake |
| Overall Dimensions (mm) | 1640×960×930 | Overall Dimension (in) | 65×38×37 |
| Weight (kg) | 1300 | Weight (lb) | 2866 |
Optional Accessories
Available with pressure wire rope, hook, shackle, drop chain, gas treatment triad, and other optional configurations to meet specific operational requirements.
Spare Parts List
| Part Name | Part Number |
|---|---|
| Retainer ring Ⅰ | XJFH-4.5/35-4004 |
| Brake assembly | XJFH-4.5/35-5600 |
| Silencer 3/8 | BSLM-03 |
| Piston | XPS-09 |
| Guide sleeve 280*6*2 | XPS-11 |
| Guide sleeve 131*6*2 | XPS-13 |
| Brake pressure plate | XPS-07 |
| Brake disc assembly | XPS-06 |
| Brake pads | XPS-03 |
| Skeleton seal ring50*72*8 | GB/T13871 |
| Seal off | XPS-12 |
| Gland | XPS-10 |
| New cover | XPS-05 |
| Internal and external valve springs | SD1125-030004 |
| Brake assembly | XJFH-4.5/35-5500 |
| RFL | QTY+QSL+QIUD-40 |
| Pressure regulating valve | GR200-08 |
| Seat valve | J614F-16P |
| Quick exhaust valve | QE-03 |
| Quick exhaust valve | QE-02 |
| Air Hole valve (two-way three-way) | 3A210-08-NC |
