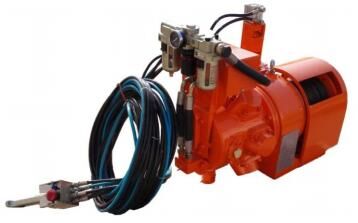

JQH-10×24QB Pneumatic Winch 0.5T-10T Capacity
| Brand Name | Juling |
|---|---|
| Certification | ISO,CE,API |
| Model Number | JQH Air Winch |
| Minimum Order Quantity | 1 |
| Delivery Time | 20 |
| Payment Terms | TT |
| Supply Ability | 10/Per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Certifications | CE, ISO |
|---|---|---|---|
| Rated Load | 0.5 Ton - 10 Ton | Capacity | 0.5T-10T |
Product Description
JQH-10×24QB Pneumatic Winch
The JQH Series Air Winch features a remote control system for convenient and precise operation, allowing users to control the winch from a safe distance. This enhances safety by minimizing accident risks during lifting operations.
Constructed with high-quality steel components, this winch ensures durability and reliability in demanding conditions. The automatic disc brake mechanism provides reliable braking performance to prevent accidental slips or falls.
Designed to be explosion-proof, the JQH Series is suitable for hazardous environments. Its compact and lightweight design makes it ideal for space-limited applications while maintaining powerful lifting capabilities.
Key Features
|
项 目 |
技术参数 |
item |
specificaton |
|
型号 |
JQH-10×24QB |
model |
JQH-10×24QB |
|
最大提升重量(kN) |
10 |
Max lifting force(lb) |
2250 |
|
最大绳速(m/min) |
24 |
Max lifting speed(ft/s) |
79 |
|
额定功率(kw) |
2.6 |
Rated power(H.P) |
3.5 |
|
额定进气压力 |
0.8 |
Air pressure( psi) |
116 |
|
额定耗气量(m3/min) |
≤5 |
Air consumpiton(scfm) |
≤176.5 |
|
容绳量(m) |
80 |
Wire capacity(ft)) |
262 |
|
钢丝绳直径(mm) |
φ11 |
diameter(in) |
φ0.43 |
|
刹车 |
自动刹车 |
brake |
aotu brakee |
|
外形尺寸(mm) |
735×375×659 |
overrall dimension(in) |
28.9×14.8×25.9 |
|
连接尺寸尺寸(mm) |
110×282×ø17 |
connecting dimension(in) |
4.3×11 ×ø0.67 |
|
重量(kg) |
176 |
weight(lb) |
388 |
