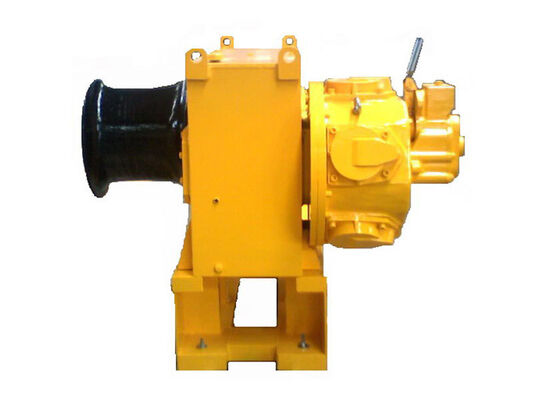

QJP-100 Pneumatic Winch with 31m Drum Capacity and Automatic Load-Holding Brake for Oilfield Lifting - CE and ISO Certified
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Product Details
| Drum Capacity | 31 M | Color | Yellow Orange Or Other Colors |
|---|---|---|---|
| Mounting Type | Universal Mounting Plate | Braking System | Automatic Load-holding Brake |
| Dimension | Custom Built | Warranty | 12 Months |
| Certifications | CE, ISO | Usage | Lifting In Oilfield |
| Safety Features | Emergency Stop Button, Overload Protection | Material | Steel |
| Highlight | 31m Drum Capacity Pneumatic Winch,Automatic Load-Holding Brake Manriding Winch,CE and ISO Certified Air Capstan Winch |
||
Product Description
QJP-100 Pneumatic Winch Lifting Equipment
Industrial pneumatic winch with 31m drum capacity designed for oilfield applications, shipyards, and dock environments.
Product Overview
The QJP series air capstan and pneumatic winch represents advanced pneumatic machinery engineered for demanding marine and industrial settings. Powered by an air motor that efficiently transmits power to the drum, this equipment delivers reliable performance in challenging environments.
Our comprehensive product line includes pneumatic, electric, and hydraulic winches with over 100 models available. Pneumatic winches range from 5kN to 150kN capacity, featuring multiple control and safety functions that meet international standards. These products are extensively used in oil, gas, coal, and marine exploration industries and are exported globally.
Model Numbering System
- QJP: Pneumatic capstan designation
- Max lifting force in first layer: ×10kN capacity rating
- Max speed: Measured in meters per minute
Technical Specifications
| Product Model | QJP-0.5*15 | QJP-3*15 | QJP-5*15 |
|---|---|---|---|
| Maximum Tractive Effort (kN) | 5 | 30 | 50 |
| Maximum Rope Speed (m/min) | 15 | 15 | 5-15 |
| Rated Power (kW) | 2.6 | 11 | 16 |
| Rated Intake Pressure | 0.8 | 0.8 | 0.8 |
| Rated Air Consumption (m³/min) | ≤5 | ≤11 | ≤18 |
| Weight (kg) | 200 | 350 | 500 |
