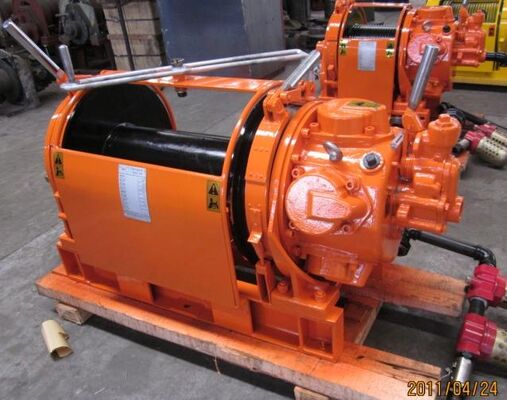

JQHS-20×24 Type Pneumatic Winch With Lifting Force 20KN
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Control Type | Air Control | Warranty | 12 Months |
|---|---|---|---|
| Rope Diameter | 8 Mm - 20 Mm | Certifications | CE, ISO |
| Usage | Lifting In Oilfield | Color | Yellow Orange Or Other Colors |
Product Description
JQHS-20×24 Type Pneumatic Winch With Lifting Force 20KN
Description:
The JQHS-20×24 Type Pneumatic Winch, with its 20KN lifting force and explosion-proof design, is a versatile and critical safety asset on the drilling rig floor. Its primary role is to handle auxiliary lifting, positioning, and pulling tasks with reliable power in hazardous environments where sparks from electric equipment must be avoided.
Key applications include safely positioning heavy drill pipe tools and handling equipment, assisting in the assembly and disassembly of BOP (Blowout Preventer) stacks by providing controlled pulling force, and tensioning guide wires or service lines. It is also indispensable for routine maintenance work, such as lifting machinery components or pumps for service. By enabling precise, controlled movement of loads, this pneumatic winch enhances operational efficiency while significantly reducing manual labor and the associated risk of injury, contributing directly to a safer and more productive worksite.
Technical Parameter:
| 项 目 | 技术参数 | item | specificaton |
| 型号 | JQHS-20×24 | model | JQHS-20×24 |
| 最大提升重量(kN) | 20 | Max lifting force(lb) | 4500 |
| 最大绳速(m/min) | 24 | Max lifting speed(ft/s) | 1.32 |
| 额定功率(kw) | 8 | Rated power(H.P) | 10.7HP |
| 额定进气压力 | 0.8 | Air pressure( psi) | 116 |
| 额定耗气量(m3/min) | ≤12 | Air consumpiton(scfm) | 450 |
| 容绳量(m) | 60 | Wire capacity(ft)) | 200 |
| 钢丝绳直径(mm) | φ14 | diameter(in) | φ0.55 |
| 刹车 | 手刹 | brake | hand brake |
| 外形尺寸(mm) | 835×425×604 | overrall dimension(in) | 32×16.5×23 |
| 连接尺寸尺寸(mm) | 565×343×ø22 | connecting dimension(in) | 22×13.5×ø0.866 |
| 重量(kg) | 300 | weight(lb) | 750 |
