HW Series Hydraulic Winch with 5kN~300kN Lifting Capacity Remote Control and 12-Month Warranty for Oilfield Lifting
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,ISO |
| Model Number | As Specified in the data |
| Minimum Order Quantity | 1 |
| Price | negotiable |
| Packaging Details | Wooden Box |
| Delivery Time | Stock |
| Payment Terms | T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Usage | Lifting In Oilfield | Control Type | Remote Control |
|---|---|---|---|
| Capacity | 1000 Lbs | Rope | Steel Wirerope Or Stainless Rope |
| Materials | Steel | Power | Hydraulic |
| Certifications | CE, ISO | Safety Features | Emergency Stop Button, Overload Protection |
| Color | Yellow Orange Or Other Colors | Warranty | 12 Months |
| Highlight | 5kN~300kN Lifting Capacity Hydraulic Winch,Remote Control Manriding Winch,12-Month Warranty HW Series Winch |
||
Product Description

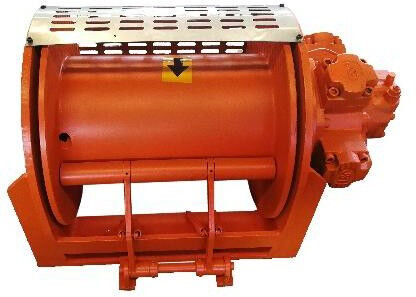

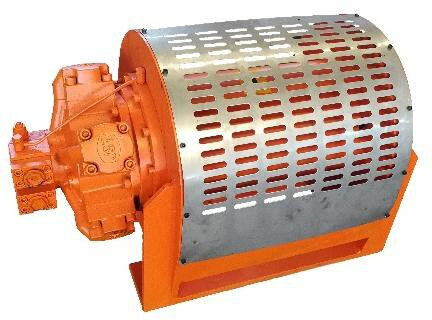

HW Series Hydraulic Winch with Remote Control
The HW (YJ) Series Hydraulic Winch combines advanced Italian technology with modern upgrades, offering lifting capacities ranging from 5kN to 300kN. Available in comprehensive specifications and models to meet diverse industrial requirements.
Product Numbering System
- Hydraulic winch system
- Rated traction of the first layer (*10kN)
Technical Specifications
| Item | HW-3 | HW-5 | HW-8 |
|---|---|---|---|
| Max Lifting Force (lb) | 6,745 | 11,240 | 17,985 |
| Lifting Speed (ft/s) | 1.64 | 1.36 | 1.65 |
| Rated Power (H.P) | 64 | 53 | 67 |
| Motor Output Volume (ml/r) | 314 | 623 | 1,116 |
| Oil Consumption (l/min) | 86 | 120 | 200 |
| Wire Rope Diameter (in) | 0.63 | 0.787 | 0.95 |
| Rope Capacity (ft) | 400 | 400 | 525 |
| Overall Dimensions (L*W*H in) | 32*17*20 | 36*19*22 | 38*29*28 |
| Weight (lb) | 650 | 1,100 | 1,550 |
Manufacturer Profile
Tai'an Juling Drilling Equipment Co., Ltd. is a high-tech enterprise with over 30 years of industry experience, specializing in the research, development, and manufacturing of pneumatic machinery. As a professional manufacturer of pneumatic winches, we serve as a top-tier supplier to major industry leaders including Sinopec and PetroChina.
Our comprehensive product portfolio spans more than 10 series and 100 variants, including JQH, JQHS, XJFH, ZJQH (manned) and QJP series pneumatic winches, QDH pneumatic hoists, and YJ hydraulic winches. Our pneumatic winches cover 8 series with load capacities from 5kN to 150kN, featuring advanced functions such as pneumatic remote control, dual local & remote control, pneumatic braking, and overload protection systems.
Quality Certifications
- ISO9001:2015 quality management system certification
- Mining product safety mark certification
- CCS type approval
- ABS type approval and CE certification for manned pneumatic winches
- EU CE certification and ATEX explosion-proof certification
- API certification from the American Petroleum Institute
