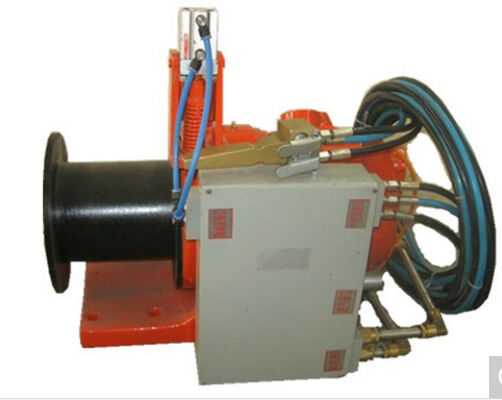

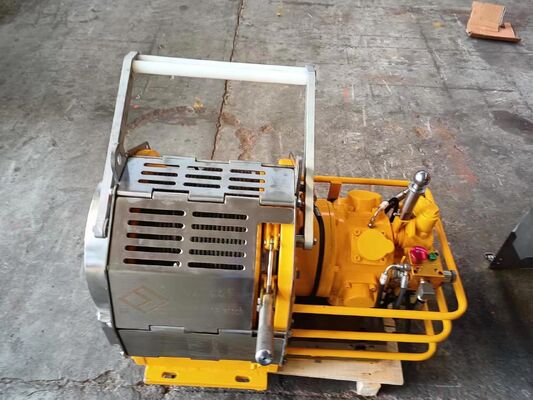

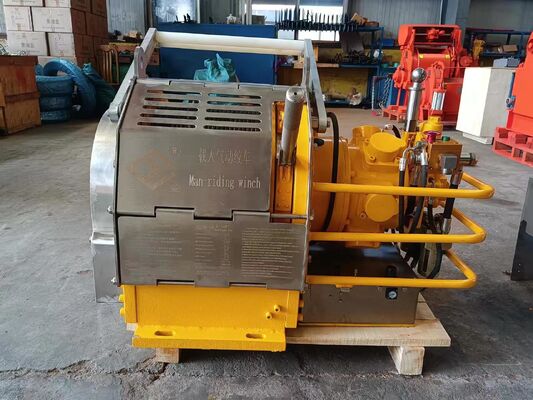

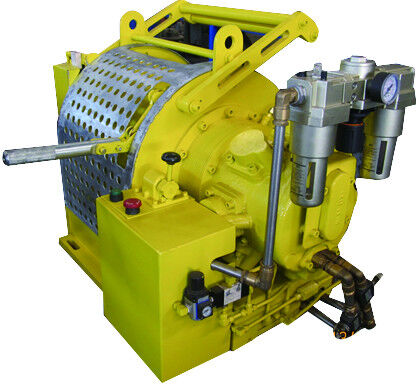

CE/ISO Certified Pneumatic Manriding Winch with 10KN Load Capacity and Remote Control for Personnel Transport
| Place of Origin | China |
|---|---|
| Brand Name | Juling |
| Certification | API,CE,ISO |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | normal package |
| Supply Ability | 20 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Lifting Force | 10KN | Power Requirements | 220V/380V, 50Hz/60Hz |
|---|---|---|---|
| Capacity | 1000KG | Control Method | Remote Control |
| Weight | 350KG | Maximum Lifting Speed | 10m/min |
| Cable Material | Steel | Wire Rope Diameter | 8mm |
| Control System | Remote Control Or Pendant Control | Certifications | CE ISO |
| Material | Steel | ||
| Highlight | 10KN Load Capacity Pneumatic Manriding Winch,CE/ISO Certified Manrider Air Winch,Remote Control Manriding Winch |
||
Product Description
CE/ISO Certified Pneumatic Manriding Winch - 10KN (1000kg) Load Capacity
Product Overview
The Manrider Air Winch is a pneumatic motor-driven device integrated with a built-in planetary speed reducer. This core component enables the winch to efficiently drive its drum, empowering the equipment to fulfill reliable lifting and traction functions with stable performance during operation. Engineered for dual-purpose functionality, the winch is capable of both personnel transport and heavy load handling. Its robust design and specialized performance make it a highly suitable solution for harsh working environments, particularly tailored to meet the rigorous demands of onshore and offshore oilfield operations.
Key Specifications
| Attribute | Value |
|---|---|
| Rated Lifting Force | 10KN |
| Power Requirements | 220V/380V, 50Hz/60Hz |
| Capacity | 1000kg |
| Control Method | Remote Control |
| Weight | 350KG |
| Maximum Lifting Speed | 10m/min |
| Cable Material | Steel |
| Wire Rope Diameter | 8mm |
| Control System | Remote control or pendant control |
| Certifications | CE ISO |
| Material | Steel |
Technical Specifications Comparison
| Specification | 1.5kN | 5kN | 15kN | 20kN |
|---|---|---|---|---|
| Lifting speed | 0-30m/min | 0-24m/min | 0-20m/min | 0-20m/min |
| Steel rope diameter | φ10mm | φ10mm | φ19mm | φ19mm |
| Wire capacity | 150m | 150m | 130m | 130m |
| Overall dimensions (L×W×H) | 850×810×910 | 930×810×910 | 1350×810×910 | 1350×810×910 |
| Motor rated power | 1.8kW | 2.6kW | 16kW | 16kW |
| Pressure of compressed air | 0.25-0.8MPa | 0.25-0.8MPa | 0.25-0.8MPa | 0.25-0.8MPa |
| Maximum air consumption | 5m³/min | 5m³/min | 18.5m³/min | 18.5m³/min |
Safety Features
- Brake system: Automatic disc brake + manual belt brake
- Safety factors: 8:1 design factor for manned operations; 5:1 design factor for load handling
- The minimum ratio of drum diameter to cable diameter is 18:1, preventing cable wear
Frequently Asked Questions
What is the brand name of this Electric Winch?
The brand name is Juling.
What is the model number of this Electric Winch?
The model number is DJFY.
Where is this Electric Winch manufactured?
This Electric Winch is manufactured in China.
What certifications does this Electric Winch have?
This Electric Winch is certified with CE, ABS, and API.
What are the payment terms for purchasing this Electric Winch?
The payment terms are T/T.
